X-ray sCMOS 4MP Detector




The detector offers up to 67 x 67mm active area and 4 megapixel resolution. A custom scintillator is deposited onto the camera in order to allow 1KeV up to 55KeV operation. Array versions with multiple modules are also available, delivering up to 16 megapixel resolution. The X-ray sCMOS detector delivers up to 18 fps full resolution allowing real time acquisition routine. A built in shutter allows smear free, shutterless acquisition even with exposure time down to millisecond range. Frame rate of >30 fps can be achieved when used in local sub area mode or line scan mode. A device server driver control allows remote aquisition through existing GUI interface. The cameras have a native 16-bit acquisition mode.


Key Features

  • Input sizes : single module

    67 x 67mm

  • Array Sizes : multiple modules

    134 x 134mm / 268 x 67mm

  • Scintillator

    Gadox:Tb for operation from 1-55 keV,

    structured CSI scintillator from 20-300 keV

  • Simultaneous integration/readout enabling

    100% duty cycle acquisition

  • OEM versions available

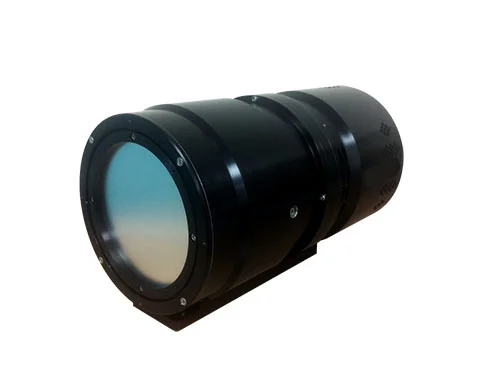

X-ray sCMOS 4MP detector

X-ray sCMOS 4MP detector



Applications

  • X-ray microtomography

  • X-ray PCB testing

  • Phase contrast imaging

  • X-ray source qualiication

  • X-ray radiography

  • X-ray Coherent diffraction imaging


Photonic Science’s sister company Scintacor offers CsI and Gadox coatings for fibre optics and other components.
